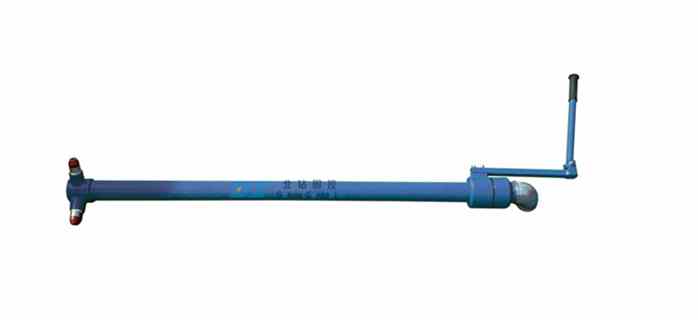

Mud gun BZ mud gun is designed and manufactured to clean mud tanks in drilling mud solids control system. It is ustally used in tank corners to keep solids from settling and a mud agitator is placed in the tank center. Mud guns are classified into 3 kinds: low pressure ones, medium pressure ones and high pressure ones, mainly be matched with a centrifugal pump, a mud pump, or a shear pump. According to different structure, BZ mud guns are optional in fixed ones and rotary ones. BZ mud gun has the advantages of good spraying effect, large cleaning area, simple structure, flexible operation and easy to use. BZNJQ Mud Gun Specification Model BZNJQ-50G BZNJQ-50X BZNJQ-80G BZNJQ-80X Gun Diameter 50mm 80mm Connection Size 2inch 3inch Rotation Angle 0° 0-360° 0° 0-360° Nozzle Qty(pcs) 3 Working Pressure 1.0-6.4MPa Features: . High jet power, well sealed, good spraying effect, large cleaning area, simple structure, flexible operation and easy to use . Optimized structure, can be equipped with various pumps · High quality steel with acid cleaning and galvanized treatment, good anti-rust performance · Discharge nozzles can be polyurethane and tungsten carbide alloy material · Flexible on configuration size · Simple design and easy to operate
