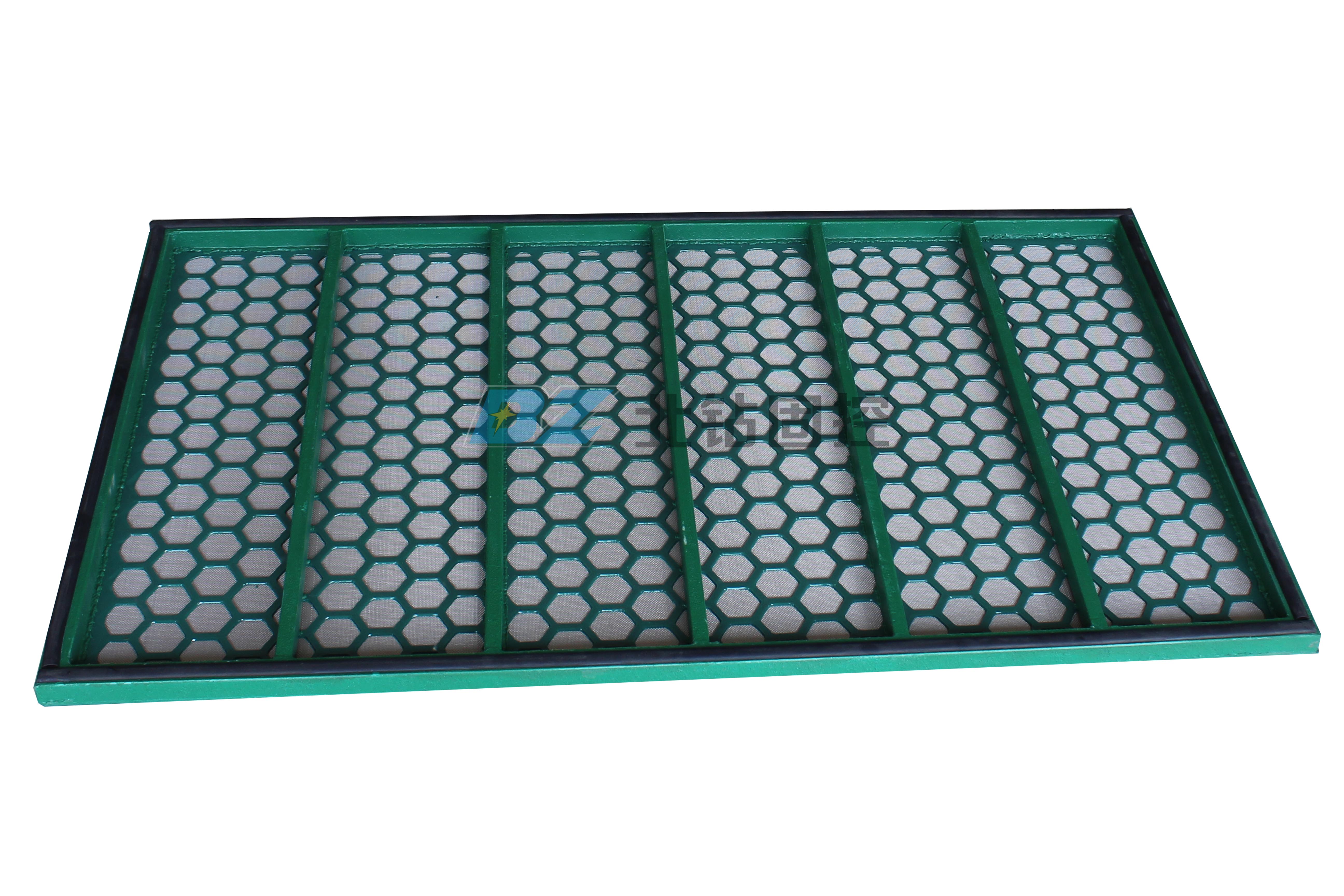

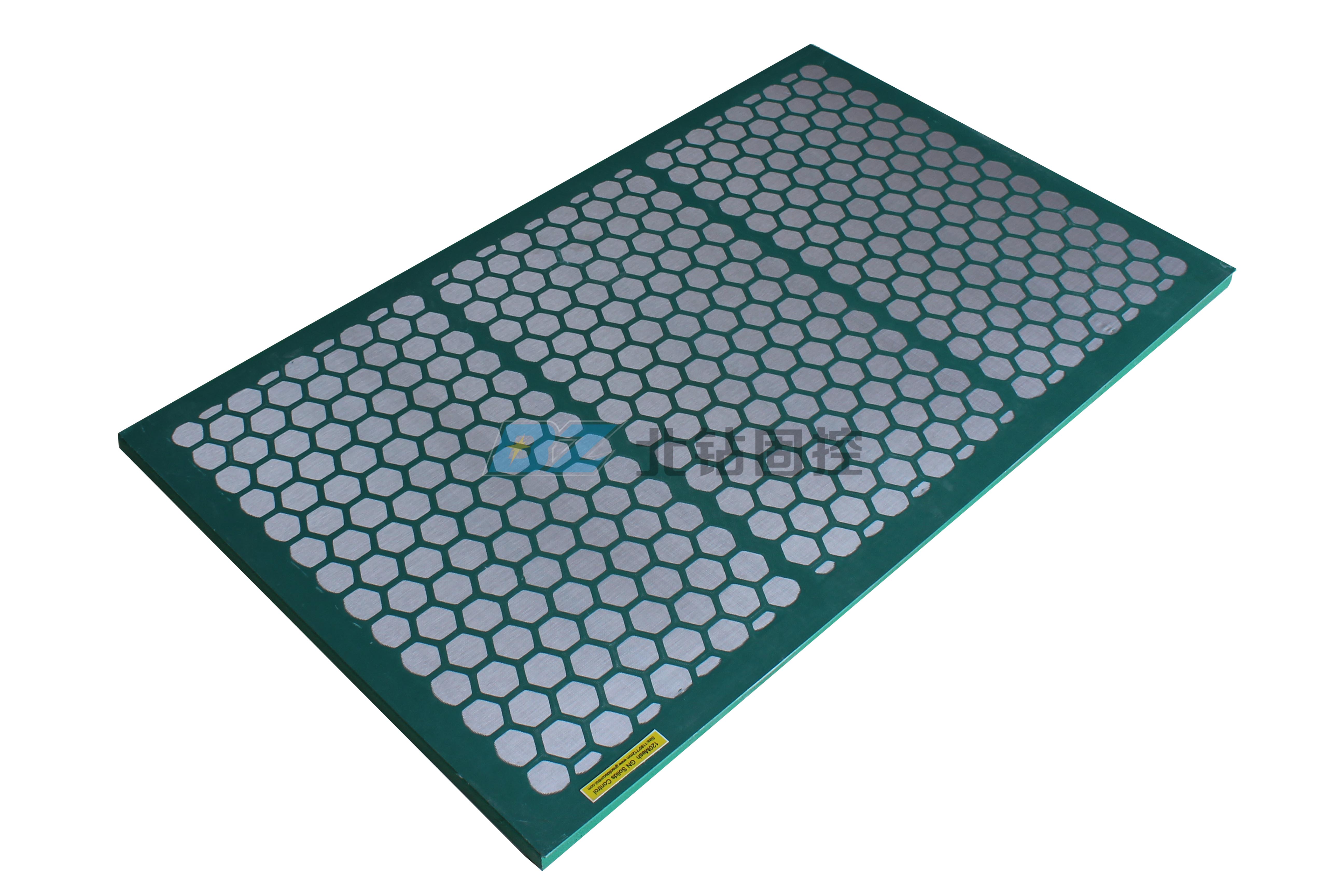

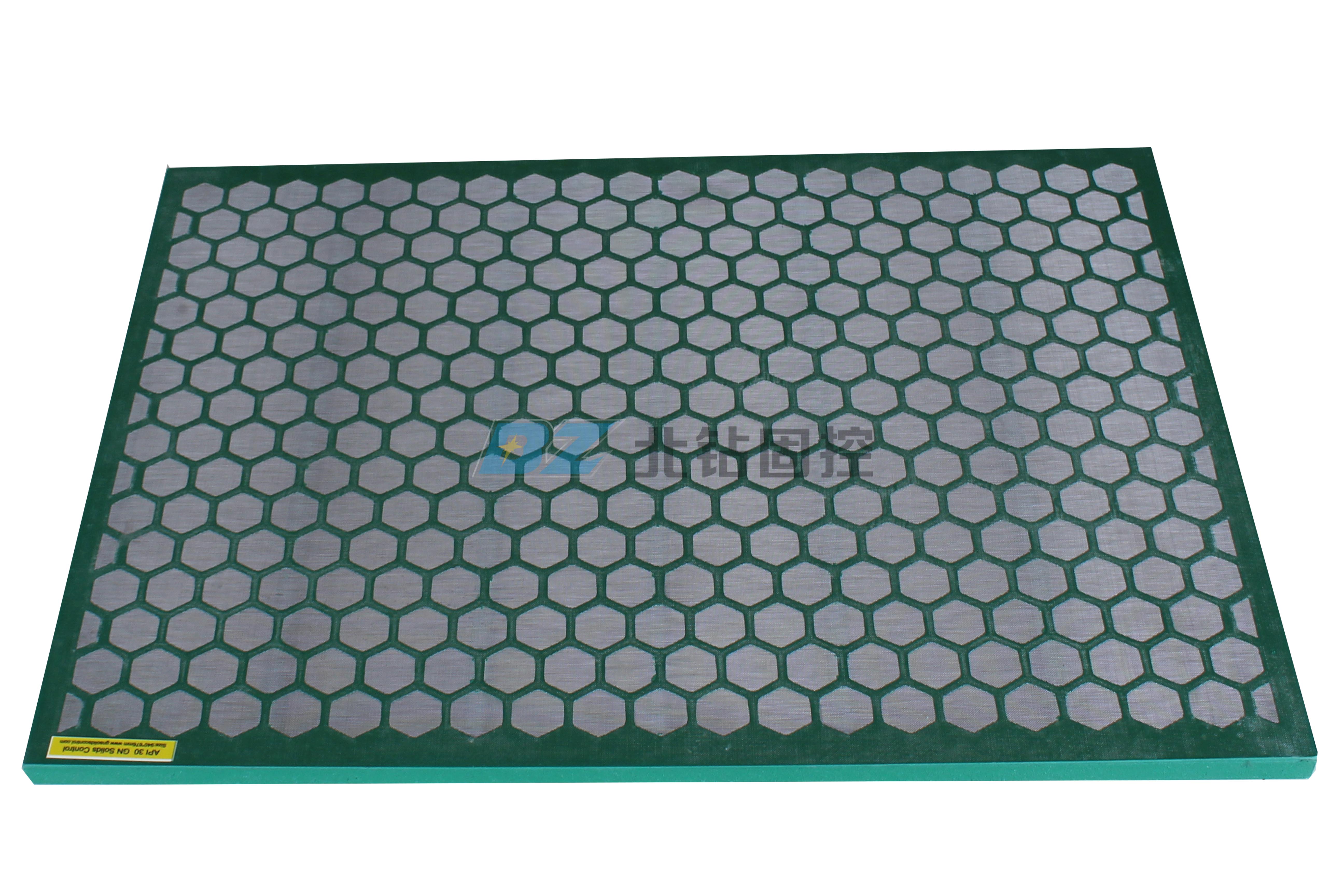

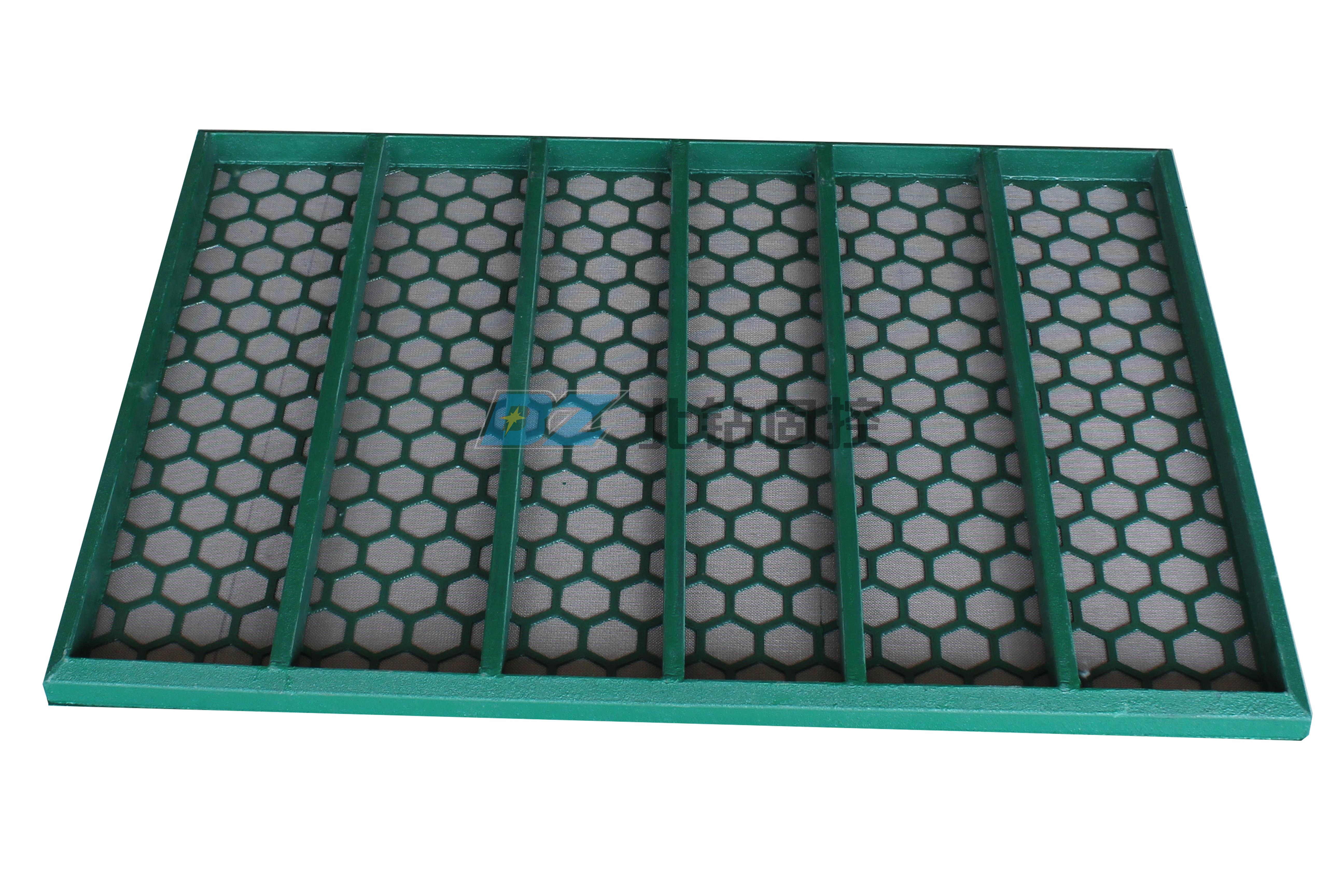

Steel Frame replacement Shaker Screen Steel Frame Shaker Screen Steel Frame Shaker Screen is in common used presently, that are constructed mostly withe two or three stainless steel layers bonded tightly to the steel frame.The frame is made up of the high-strength square steel tube or flat steel welded to multi- ribbed construction.These layers are coupled with the frame through metal backing plate or bonded straightly as well. Steel Frame replacement Shaker Screen for BZS752,BZS703,BZS584,Mi-Swaco Mongoose,NOV Brandt Cobra,VSM300,FSI5000 Mesh Dimension Adaptation model 20-325 585×1165mm Mongoose 20-325 635×1253mm KING COBRA 20-325 650×913mm VSM300 20-325 667×1250mm KPT-26 20-325 715×1250mm KPT-28 20-325 1020×1230mm KPT-40 20-325 737×1067mm FSI 5000 20-325 712×1180mm D380 API Size Parameters API Numbe D 100 Separation(Micron) API Number D 100 Separation(Micron) API 20 ＞780.0 TO 925.0 API 100 ＞137.5 TO 165.0 API 30 ＞550.0 TO 655.0 API 120 ＞116.5 TO 137.5 API 35 ＞462.0 TO 550.0 API 140 ＞98.0 TO 116.5 API 40 ＞390.0 TO 462..0 API 170 ＞82.5 TO 98.0 API 50 ＞275.0 TO 390.0 API 200 ＞69.0 TO 82.5 API 60 ＞213.0 TO 275.0 API 230 ＞58.0 TO 69.0 API 70 ＞196.0 TO 213.0 API 270 ＞49.0 TO 58.0 API 80 ＞165.0 TO 196.0 API 325 ＞41.5 TO 49.0 BZ solids control has rich production experience and mature process, according to the customer's different requirements to produce a variety of specifications ofSteel Frame replacement Shaker Screen.
