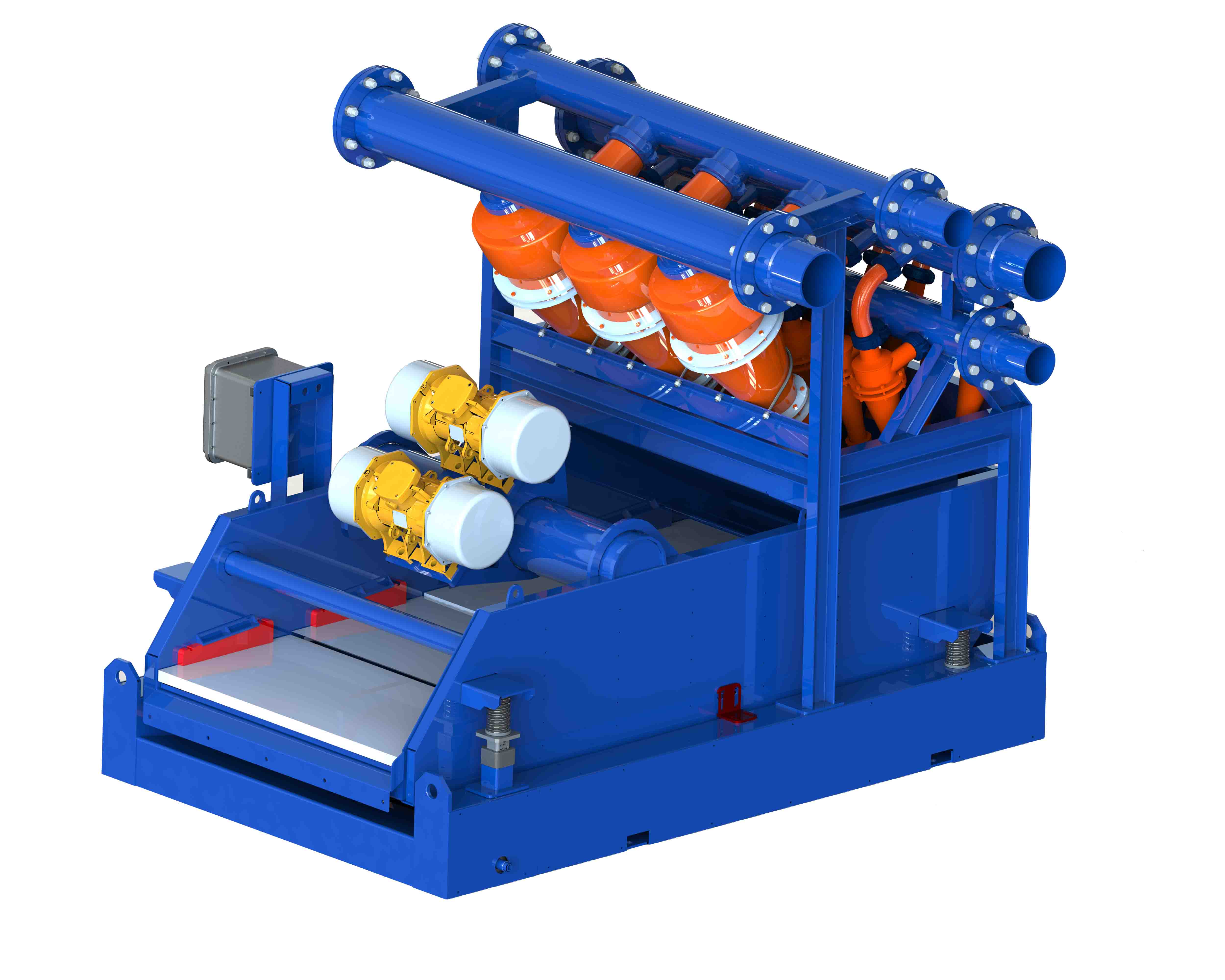

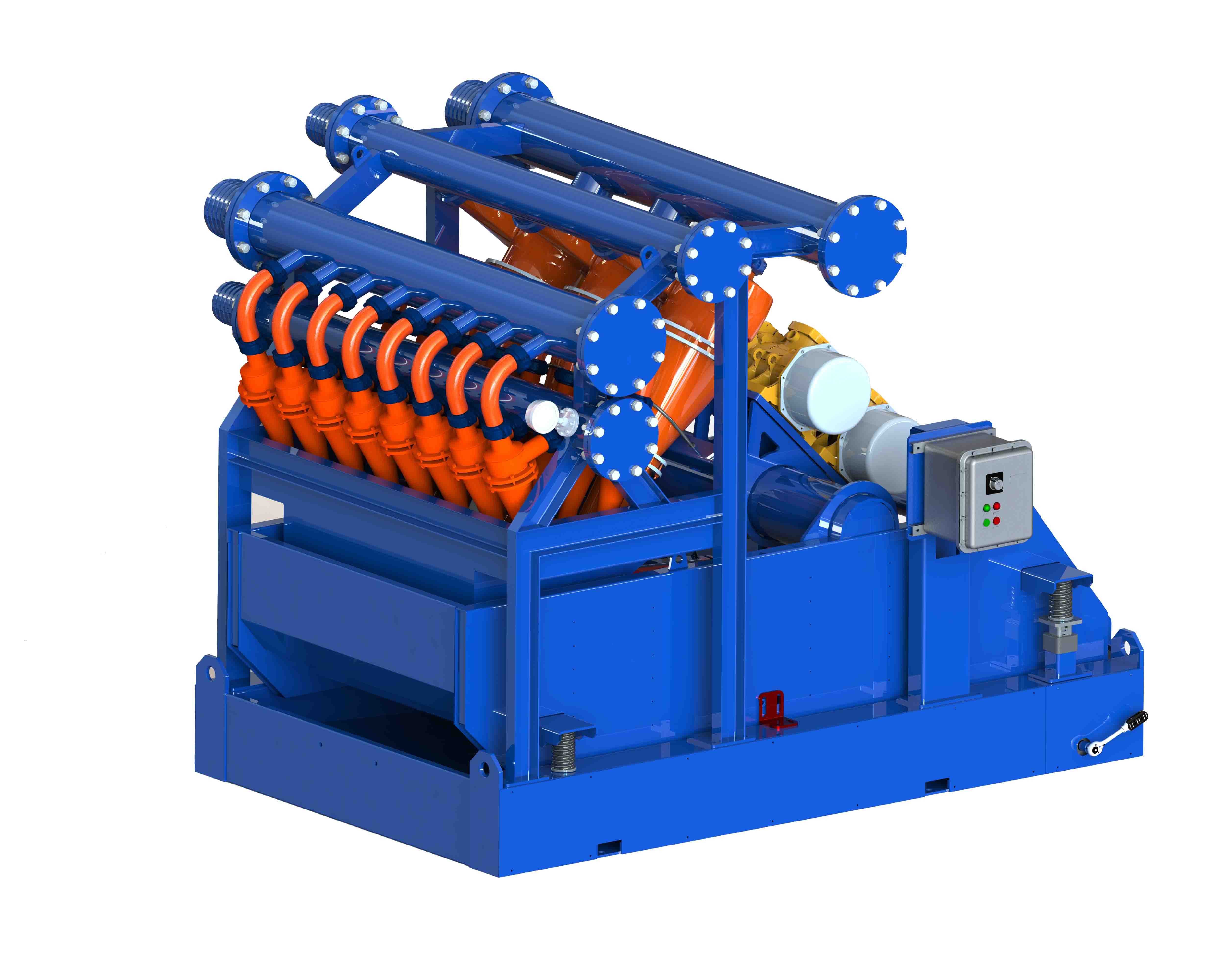

BZ Mud Cleaner Characteristics Mud cleaner is a combination of desander, desilter and shale shaker.The space on the construction site is greatly saved by it’s compact structure and reasonable design. It is mainly used to remove harmful solids from drilling mud.Different models of desander can be selected according to customer requirements. there are the following models: BZQJ583-1S8N、BZQJ583-2S12N、BZQJ583-3S16N、BZQJ584-2S12N、BZQJ584-3S16N。The processing capacity is 120 m³/h, 240 m³/h, 360 m³/h. The overall structure is very compact, the design is reasonable, and the field space is greatly saved. It is mainly used in the treatment of harmful solid phase of drilling mud. Customers can match different quantities of cyclone according to different processing capacity. Crown cyclone is made of some special materials, polyurethane material, which has greatly improved wear resistance and corrosion resistance and extended service life. Moreover, the processing of materials can meet the needs of customers. The desanding cyclone is used to treat particles between 40 and 60 μm and the desilting cyclone is used to treat particles between 20 and 40 μm. The whole cleaner can be disassembled into a shale shaker, desander and desilter according to the requirements of working conditions. screen box can be raised and lowered synchronously,angle can be adjusted at non-stop working condition.The screen box has good sealing performance and it is easy to be replaced.which greatly saved the economic cost of customers.It is made of stainless steel welding, corrosion and high temperature resistance, firm and not easy to damage in bad working conditions, .the screen box as a whole has been heat treated, which can meet the requirements of continuous work under high vibration intensity. Our composite frame screen, compared with the traditional screen, the dialysis rate is better and screening fraction is more accurate, not only greatly increased the service life but also greatly increased screening area , what’more it’s easy to replace. The supporting motors are international famous brands, such as Martin or OLI motors for guaranteed quality of our products. Welcome to inquiry
